New range of hand pumps for all purposes.

Bilge, Barrel or General Purpose Hand Pumps.

EASY-PUMP MAXI

Now with new watertight seal prevents leakage from spindle.

maxi pump spindle seal

Ideal Hand Bilge Pump for deep inaccessible lockers and under engines.
No more bending down or straining.
High discharge rate through hose to overboard or into container.

Pump out your dinghy from the comfort of your cockpit,
no more wet feet or capsized waterlogged tenders.

Clean out you fish pond.
Pump out all that black gunge from the bottom of your pond.
Reaches down to the bottom of deep ponds and filter chambers.

HOT TUBS, SWIMMING POOLS JACUZZI
All need that final pump out or clean out when in service.
Draining for winter is a breeze. Sucks up the debris from the low points in your HOT TUB.

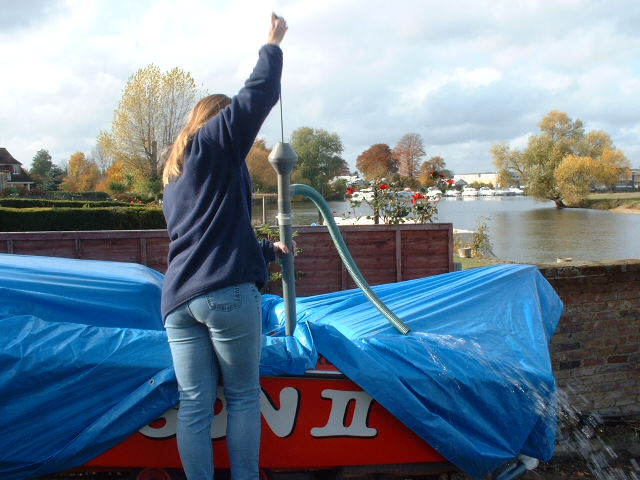

maxi pump in action on narrow boat

The best tool for pumping diesel or oil from 45 gall drums.
Pump screws directly into barrel threads. Outlet nozzle available to replace hose if required.

The MAXI for pumping out the boat
EASY effortless pumping right down to the keel.

maxi pump for gullies
Around the House
Pump out those blocked or smelly gullies and drains.

Robust construction. Can be dismantled for cleaning or maintenance.
Patented design - Totally maintenace free watertight seal prevents leakage from spindle.
Lightweight, Portable, Effective and Inexpensive.

Overall length 1.2m Diameter 52mm Capacity per stroke 1.2 litres

Applications & Features

* Suction type : manual piston type
* Water based solutions, non-corrosive chemicals, degreasers, floor waxes and stripers, gasoline, kerosene, light oils and other similar viscosity non-corrosive liquids.
*Manual bilge pump for your boat, draining hot tubs and large aquariums, drum and barrel pump, water collection pump, evacuation of standing water.
Biodiesel transfer and manufacture

* Plastic material construction
* Fits any size container, can, drum or barrel 15, 30 and 55 gallon drums with openings from 1 3/8” to 2”.

Specifications
* Total Length : 1219 mm
* Suction tube Length : 920 mm
* Suction tube Inner Dia. : 50 mm
* Discharge Tube Length : 1000 mm
* Discharge Tube Inner Dia. : 38 mm
* Discharge Nozzle Inner Dia. : 38 mm
* Head Out Dia. : 380 mm
* Rubber Non- Toxic Head Seal Dia. : 22 mm
* Delivery Volume : About 1 liter / per upstroke
* Main Material : PVC, P.E., Plated steel ( Piston rod ) , Non-Toxic Rubber ( Seal ), PVC ( discharge hose )
* Color : Grey,

PRICES and PURCHASE please click the link to go to our New Site

CHEMICAL PUMP

As above but manufactured in solvent resistant materials.

Aluminium spindle with stainless steel fastenings.

Chemical resistant plastics used throughout. PRICES - APPROX. AS STANDARD EASY-PUMP MAXI - +100%
Available to order.

PRICES and PURCHASE please click the link to go to our New Site

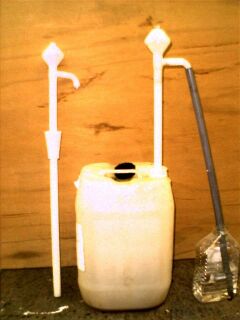

EASY-PUMP - MINI

Smaller version of the Easy Pump Maxi - Non Toxic for drinking water, edible oils, cooking oils.

Ideal for camping, small boat use, no need for electric pumps, no waste or spillage.

Dispenses detergents, engine oil, water or any non high solvent liquid from 25L containers. Economical versatile pump for smaller applications. Use for Bilges, Wine making, Drinking water, Fishtanks etc., etc.

(max temp 30 deg.C.)- (New High Temperature model now available)

OPERATION NOTE: Operate with steady moderate pumping action. Do not attempt to exceed the natural flow rate of the liquid being pumped. Excessive pumping will cause leakage from the spindle.

Height of discharge must not exceed height of outlet.

PRICES and PURCHASE please click the link to go to our New Site
